Description
lcd display für e bike TFT Display with 3.5" high contrast Color Screen for electric Bike Kit – theebikemotorkitUKC1 TFT Display with 3. 5" high contrast Color Screen for electric Bike Kit It displays the battery power level, time, speed, mileage, gear, and with the function of components error checking & report. It can adjust the blacklight brightness level, speed limit, current limit, power magnet, gear control and program upgrade. With waterproof connectoion and normal cable connection option. UKC1 TFT Display Specifications *Screen Size: 3. 5" *English

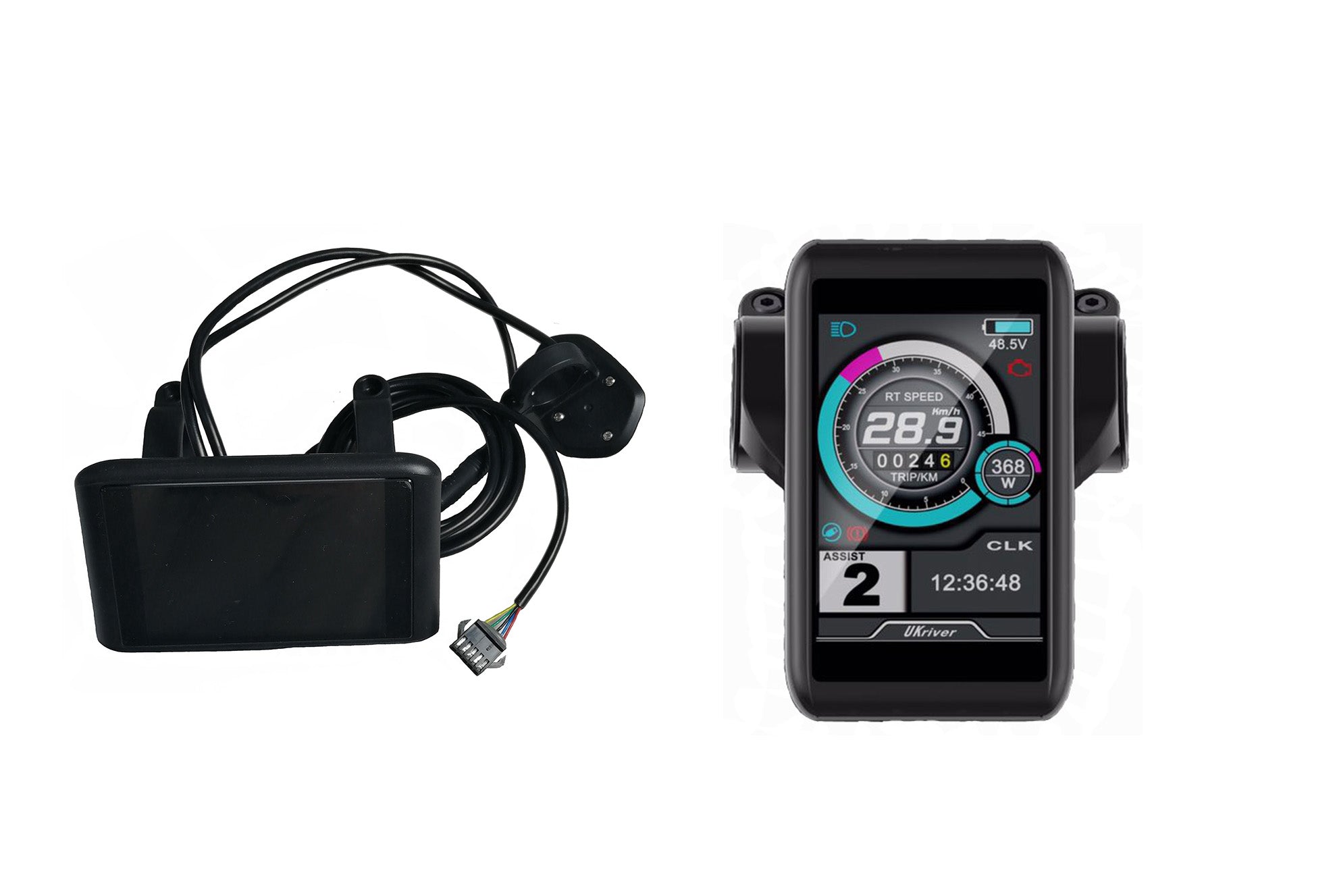

UKC1 TFT Display with 3.5" high contrast Color Screen for electric Bike Kit
It displays the battery power level, time, speed, mileage, gear, and with the function of components error checking & report. It can adjust the blacklight brightness level, speed limit, current limit, power magnet, gear control and program upgrade.
With waterproof connectoion and normal cable connection option.
UKC1 TFT Display Specifications
*Screen Size: 3.5"
*English display interface
*Attached instruction
*24V/36V/48V/52V/60V/72V power supply
*Instrument rated power 1W
*Meter maximum power 5W
*USB charging DC 5V500mA
*Shutdown leakage current <1uA
*Supply the working current of the controller to 100mA, the peak value should not exceed 300mA
*Operating temperature -20～70degree Celsius
*Storage temperature -30～80degree Celsius
*The color of the five-core waterproof cable is <red, blue, black, green and yellow>, and the line sequence is defined as follows:
1. Red: positive (battery power 24V/36V/48V);
2. Blue: the controller locks the wire;
3. Black: GND;
4. Green: RXD instrument input signal, the instrument receives signals from the controller;
5. Yellow: TXD instrument output signal, the instrument sends a signal to the controller,
